Dual Channel PA Power Amplifier 1800 Watts

/, PA system/Dual Channel PA Power Amplifier 1800 Watts

Dual Channel PA Power Amplifier 1800 Watts

DXA-1802

900+900 WATTS

Dual Channel PA Power Amplifier

  • Dual channel direct coupled amplifier.
  • 1800 Watts rated output.
  • Rugged & reliable. Designed to work continuously under stringent operating conditions.
  • High fidelity sound. Ideal for high-end music programmes.
Continuous Rated Power .
Stereo/Mono 8Ω 370W + 370W RMS, 4Ω 650W + 650W RMS, 2Ω 900W + 900W RMS
Bridged Output 8Ω 1300W RMS, 4Ω 1800W RMS
Single Channel Driven Output 8Ω  385W RMS, 4Ω 720W RMS, 2Ω 1100W RMS
THD + N 0.5%
Frequency Response (-1dB) 20-20,000Hz
Power Bandwidth (0.5% THD) 20-20,000Hz
Input Sensitivity 0dBm (775mV)
Input Impedance 10k Unbalanced , 20k Balanced
S/N Ratio 95dB
Channel Separation 65dB at 1kHz
Damping Factor 400 : 1 (8Ω)
Slew Rate 35V/µs
Protections Temperature, DC, RFI, Short Circuit, Overload, AC over voltage, Built-in limiter

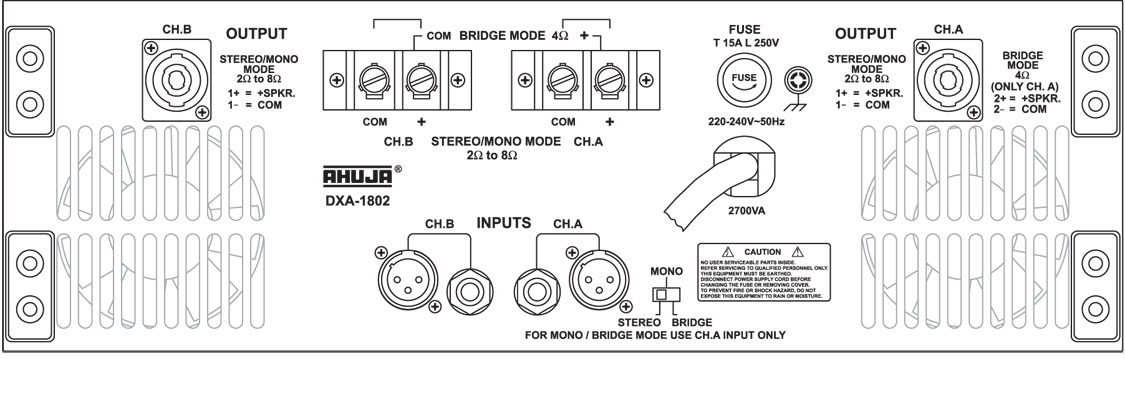

Input Connectors 2 × XLR, Stereo Phone Jack 6.3mm
Output Connectors Speakon 4-Way, Heavy Duty Screw Terminals each channel
Cooling Variable Speed DC Fan with Temperature Sensing
Front Panel Controls 2× 21 Step Level Attenuators
Indicators ON, Mode (Stereo, Mono, Bridge) Signal levels, Clip, Temperatures, Fault, Overload (Ch. A & B)
Power Consumption 2700VA @ 240V / 50Hz
Dimensions W482 × H165 × D500mm
Weight 26.0kg

Operation Manual

17683 KB
