Medium Wattage PA Mixer Amplifier 50 Watt

/, PA system/Medium Wattage PA Mixer Amplifier 50 Watt

Medium Wattage PA Mixer Amplifier 50 Watt

DPA-570

50 WATTS WITH BUILT-IN DIGITAL PLAYER

MEDIUM WATTAGE PA MIXER AMPLIFIER

  • 3 Mic & 1 Aux Input.
  • Built-in MP3 player with USB reader and remote control.
  • Line Output for connecting to a Booster Amplifier.
  • Active Bass & Treble controls.
  • Instant transfer to DC Power (Car Battery) if AC power fails.
Power Output 75W Max., 50W RMS at 10% THD, 45W RMS at 5% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 3 × Mic 0.6mV/4.7kΩ, 1×Aux 100mV/330kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 55dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz, Line: 400mV/3.5kΩ

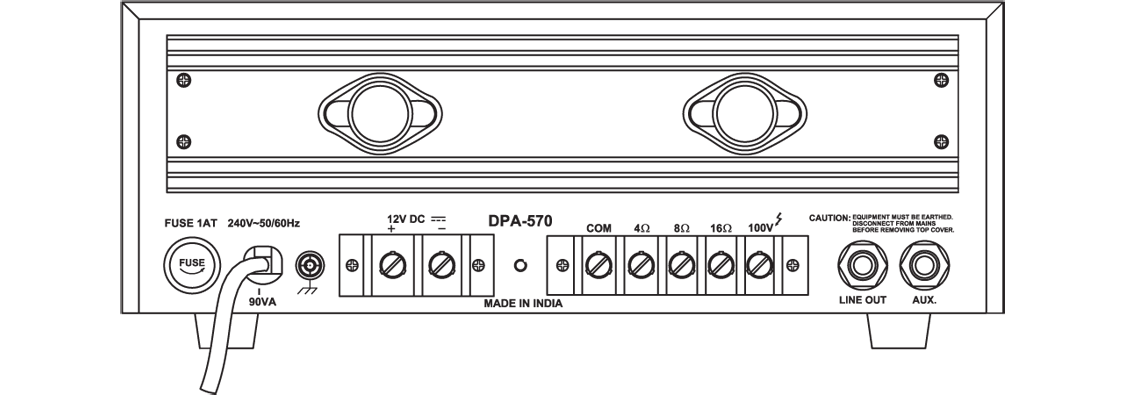

Speaker Outputs 4Ω, 8Ω, 16Ω & 100V
Digital Player MP3 Player with USB reader
Power Supply AC: 220-240V 50/60Hz, DC: 12-14V Car Battery)
Power Consumption AC: 90VA DC: 3.1A
Dimensions W305 × H120 × D305 mm
Weight 7.0kg

Operation Manual

2827 KB
